Metabo

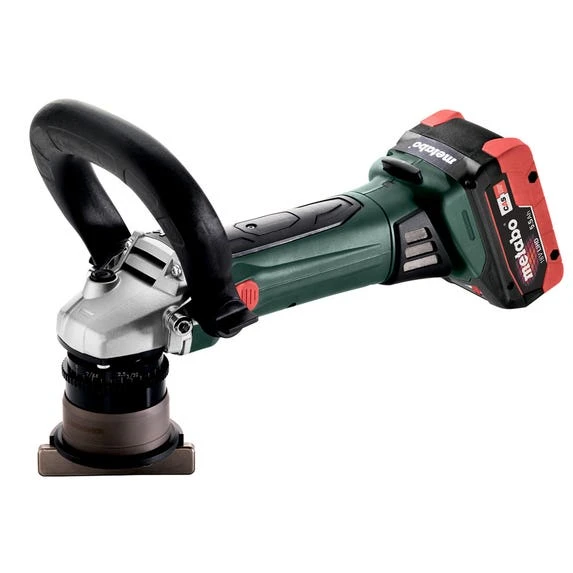

Cordless 18V 1/8″ Chamfer/Radius Tool 5.5Ah Kit 601754750
FEATURES:
- Most powerful cordless metal bevelling tool for 45° chamfers up to 4 mm and radii of 2 and 3 mm.
- Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion.
- One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working.
- Slim cutter head and ball bearing stationary seal ring for working in tubes and in curves.
- Guide stop for uniform finish and high quality of the surface when processing straight sheets.
- Bail handle adjusts without tools for secure, even guiding.
- Battery pack can be swiveled for better working in hard to reach places.
- Overload protection: protects the motor from overheating.
- Electronic soft start for smooth start-up.
- Restart protection: prevents unintentional start-up after battery replacement.
- Detachable dust filter protects motor from coarse particles.
- LiHD Battery Pack for ultimate power, extremely long run time and service life.
- With metaBOX, the smart solution for transportation and storage.
- Multiple brands, one battery pack system: This product can be used with all 18 V battery packs and chargers from CAS brands.
SPECIFICATIONS:
| Type of battery pack | LiHD |
|---|---|
| Battery capacity | 2 x 5.5 Ah |
| Battery Voltage | 18V |
| No-load speed | 7000 RPM |
| Type of edges | chamfer and radius |
| Max. chamfer width 45° | 1/4″ |
| Max. chamfer height at 45° | 5/32″ |
| Possible radii | R2 / R3 |
| Grade cutting depth setting | 0.00394″ |
| Curvature smallest internal Ø | 13 mm |
| Weight without battery pack | 5.3 lbs |
| Sound pressure level | 84 dB(A) |
| Sound power level (LwA) | 95 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
INCLUDES:
- (1) Cordless 18V 1/8″ Chamfer/Radius Tool 5.5Ah Kit (601754750)
- (1) Dust Protection Filter
- (1) Bow type handle
- (1) Screwdriver for Torx screws 15
- (1) Guide Stop
- (1) metaBOX 215
- (1) Charger ASC 30-36 V “AIR COOLED”
- (2) LiHD Battery Packs (18 V/5.5 Ah)
- (2) Carbide indexable inserts 45° chamfer
- (2) Carbide indexable inserts radius R2
- (2) Carbide indexable inserts radius R3
