- JET

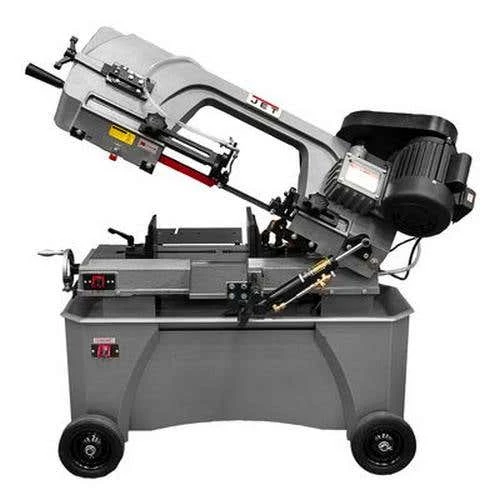

- HVBS-712D 7 x 12″ Deluxe Horizontal / Vertical Bandsaw 414560
- The JET HVBS-712D Deluxe Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. The newly redesigned JET Bandsaw is packed with features like a new stand and increased working height to get the job done faster and easier.
- Large 10″ x 12″ infeed table assembly extends the support area and can be used in either horizontal or vertical positions

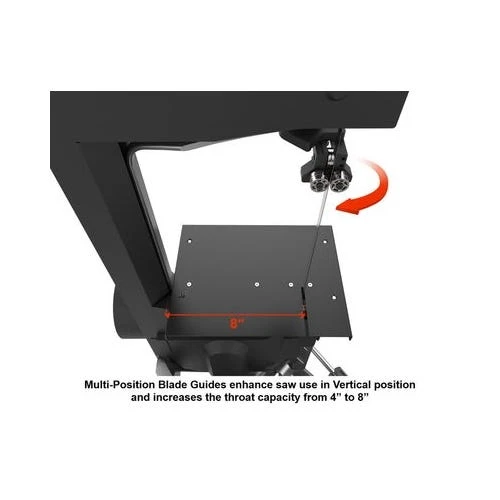

- Multi-position blade guides enhance use in vertical position by increasing the throat capacity from 4″ to 8″ and creates a safer working position
- Tool-less quick lock vise with preset mitering positions at 15; 30 & 45
- Improved Height and width of stand with built-in storage cabinet and chip tray
- Micro adjustable tool-less material stop for accurate set-up and repeatability
- CSA/CUS Certification
- Blade drive is a belt to sealed; hardened and ground gear drive system
- Blade wheels are made from flanged cast iron for increased durability
- Auto shut-off after cut
- Adjustable ball bearing blade guides
- Cast mounted adjustable hydraulic downfeed
- Complete coolant system
- Four 8″ rubber wheels for ease of movement
- 3/4″ Bi-Metal blade
- Cutting Capacity (W x D) (In.): 7 x 12
- Round at 90 Degrees (In.): 7
- Round at 45 Degrees (In.): 5
- Rectangle at 90 Degrees (In.): 4 x 11 / 7 x 10-1/4
- Rectangle at 45 Degrees (In.): 6 x 4
- Square at 90 Degrees (In.): 7 x 7
- Square at 45 Degrees (In.): 5 x 5
- Throat Depth (In.): 7
- Head Movement (Deg.): 0
- Vise Swivels (Deg.): 45
- Blade Speeds (SFPM): 86; 132; 178; 260
- Blade Wheel Diameter (In.): 11-3/4
- Blade Length (In.): 93
- Blade Size (In.): 3/4 x 0.032 x 93
- Bed Height (In.): 22-1/4
- Coolant Capacity (Gal.): 1
- Motor (HP): 3/4 HP; 115/230V; 1Ph
- Weight (Lbs.): 418

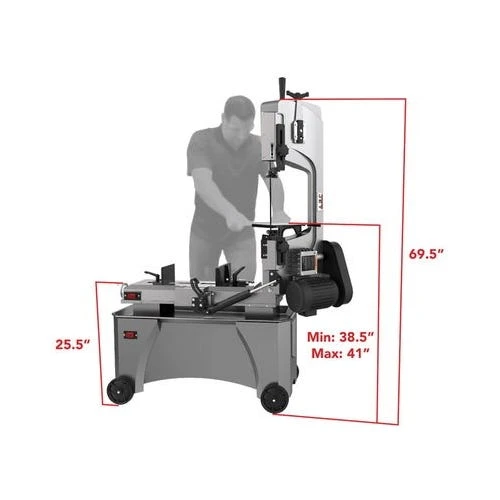

- Overall Dimensions (L x W x H) (In.): 48 x 17 x 44
“
