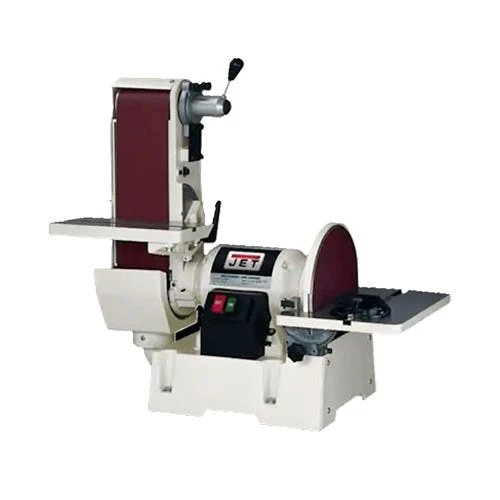

JET Tools Jet JSG-6DC 6″ X 48″ Belt / 12″ Disc Sander, 1-1/2HP, 1Ph 115/230V 708599

Jet

JSG-6DC; 6 x 48″ Belt / 12″ Disc Sander; 1-1/2HP; 1Ph 115/230V 708599

The JET JSG-6DC Sander combines a 12″ disc and a 6″ x 48″ belt to provide raw industrial 1.5 HP sanding power. The exclusive dual thumbscrew belt tracking adjustment locks to keep the belt on track while tackling any tough application. The sander boasts both a quick release belt tension lever and a quick lock dust cover for the disc. The built in handle allows for easy portability around the workshop.

FEATURES:

• Two precision-ground cast iron tables have positive stops at 90° and 45° for sanding flat pieces or mitered angles; allows belt sander to be used vertically; horizontally or anywhere in-between.
• Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use.
• Graphite covered steel platen runs cooler increasing machine and belt life.
• Specially designed belt guard allows full use of the 6″ belt width and length.
• Tracking adjustment knob with quick-lock handle keeps belt on track during use.
• Quick-release belt tension lever makes belt changes fast and easy.
• Quick-lock dust cover allows fast disc changes.
• Single 4″ dust port on the back of the base collects dust effectively from both the belt and disc.
• Powerful 1-1/2HP motor easily handles the toughest sanding operations.
• Built-in handles for easier portability.

SPECIFICATIONS:

Disc Diameter (In.)	12
Disc Speed (RPM)	1725
Disc Table Tilt (Deg.)	25 Up; 45 Down
Belt Table Tilt (Deg.)	20 Up; 45 Down
Disc Table Size (L x W) (In.)	16-1/2 x 10
Sanding Belt Size (L x W) (In.)	48 x 6
Belt Speed (RPM)	2500
Belt Table Size (L x W) (In.)	12-1/2 x 7
Motor Power (HP)	1-1/2
Motor Voltage (V)	115/230
Motor Amps	12/6

“
