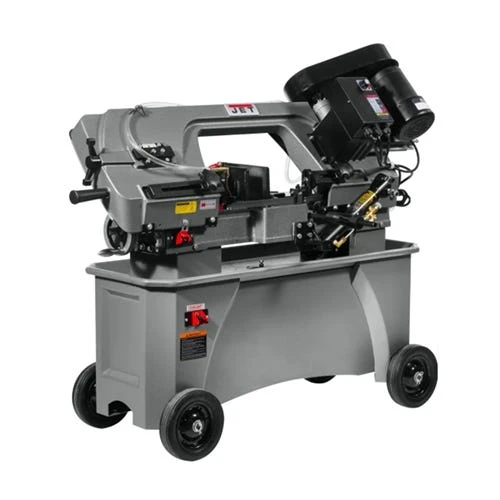

JET Tools Jet HVBS712V 7″ X 12″ Variable Speed Horizontal / Vertical Bandsaw 415559

Jet

HVBS712V; 7 x 12″ Variable Speed Horizontal / Vertical Bandsaw 415559

The JET HVBS-712V Horizontal/Vertical Variable Speed metalworking bandsaw’s industry-leading innovation is centered around increased output and operator safety. Powered by a 3-step gear one horse power DC motor; the HVBS-712V produces unbeatable torque while consuming less energy and is capable of producing speeds from 88 – 270 SFPM.

FEATURES:

• Tool-less Quick Change Vise Miters to 45 degrees.
• Adjustable Hydraulic Feed System.
• Vertical 9″ x 12″ Worktable.
• Multi-Position Blade Guide.
• Side-Eccentric Shaft and ball bearing: Rear-Ball Bearing.
• Leveling Feed & 2 8″ Rubber Wheels for Ease of Movement.
• Auto Shut-Off after Cut.

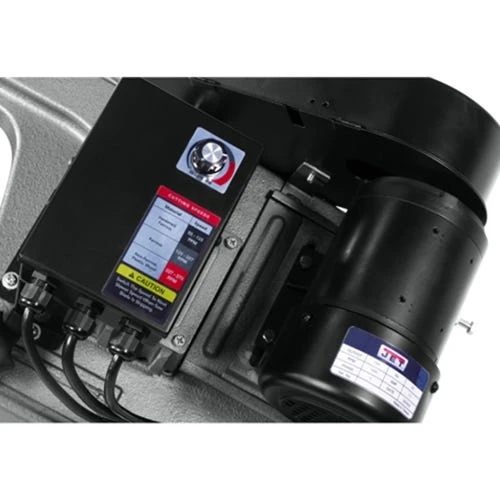

• Speed changes are now done with the turn of a knob; no need to change belts.
• Blade Tensioning Guides.
• CSA/US Certified.

SPECIFICATIONS:

Round at 90 Degrees (In.)	7
Round at 45 Degrees (In.)	4-1/2
Rectangle at 90 Degrees (In.)	1 (H) x 12 (W); 2(H) x 11-1/4 (W); 4(H) x 11 (W); 7(H) x 10-3/8 (W)
Rectangle at 45 Degrees (In.)	6-1/2 (H) x 4-1/2 (W)
Square at 90 Degrees (In.)	7 x 7
Square at 45 Degrees (In.)	4-1/2 x 4-1/2
Vise Swivels (Deg.)	45°
Blade Speeds (SFPM)	88 – 270
Blade Wheel Diameter (In.)	11-3/4
Blade Size (In.)	3/4 x .035 x 93
Bed Height (In.)	22-1/4
Motor (HP)	7.5 Amp; 3500RPM DC motor
Overall Dimensions (L x W x H) (In.)	48 x 17 x 40
Vertical Work Table	9 x 12

“
