JET Tools Jet HVBS-710G; 7 X 10-1/2″ Horizontal/Vertical Mitering Geared Head Bandsaw 413452

Jet

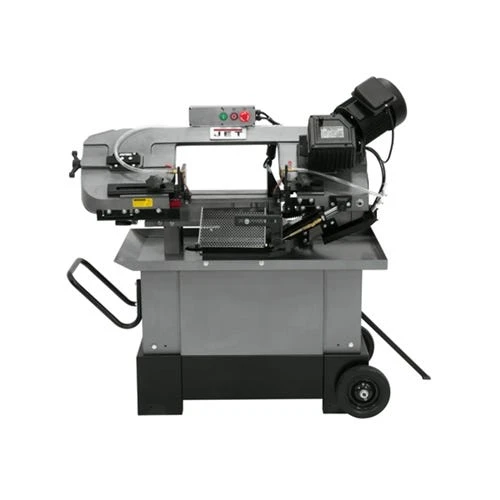

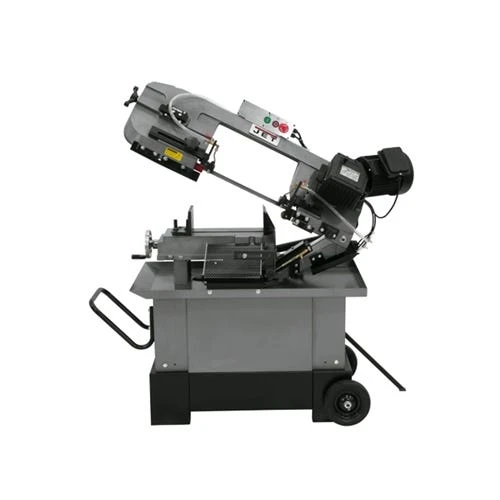

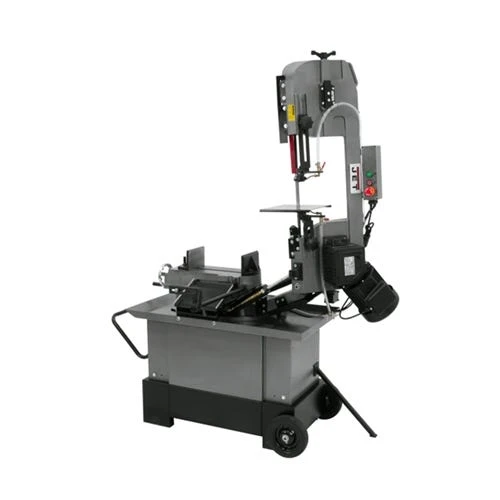

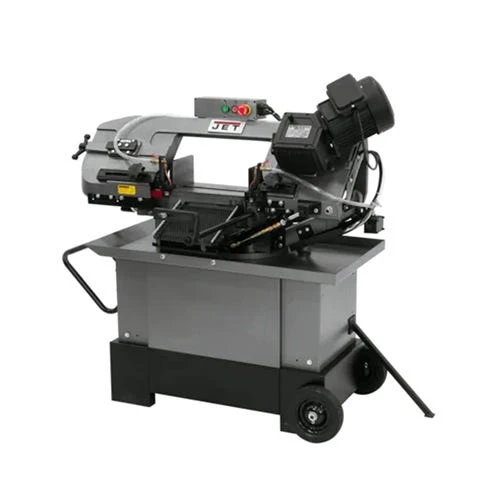

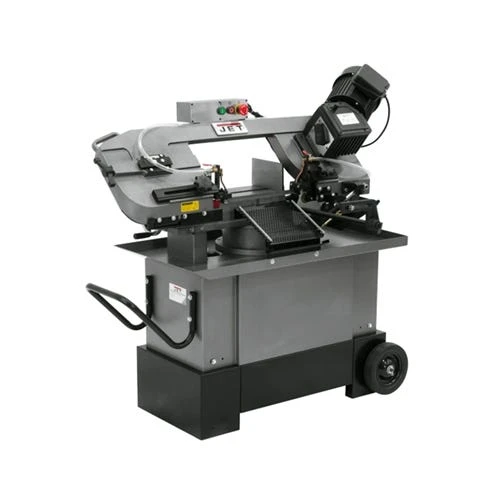

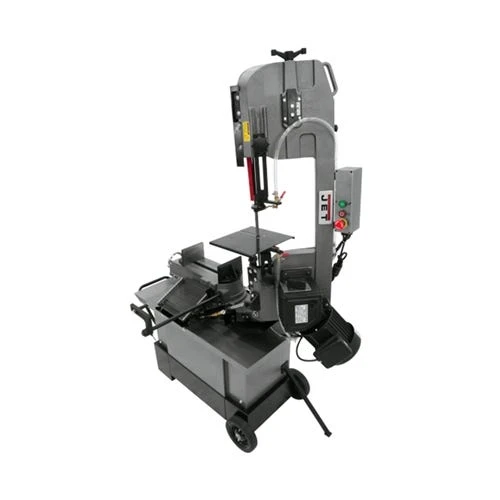

HVBS-710G; 7 x 10-1/2″ Horizontal/Vertical Mitering Geared Head Bandsaw 413452

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty; JET Mitering Bandsaws are built to last and deliver precision results.

FEATURES:

• Mitering head swivels to cut any angle 0° – 45° while the work piece remains secured.
• Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels.
• Fully adjustable hydraulic downfeed system.
• Heavy-duty cast iron saw bow and bed.
• Large 8″ wheels and handle for easy movement with 3/4″ Bi-Metal blade.
• Quick-positioning vise with fully adjustable jaws.
• Built-in; self propelled blade brush extends blade life.
• Vertical work table.
• Coolant system.
• Adjustable material stop.

SPECIFICATIONS:

Cutting Capacity (W x D) (In.)	7 x 10-1/2
Round at 90 Degrees (In.)	7
Round at 45 Degrees (In.)	4
Rectangle at 90 Degrees (In.)	7 x 10-1/2
Rectangle at 45 Degrees (In.)	4-3/4 x 4
Vise Swivels (Deg.)	45°
Blade Speeds (SFPM)	145; 200; 245
Blade Wheel Diameter (In.)	11-3/4
Blade Size (In.)	3/4 x .035 x 93
Bed Height (In.)	23
Motor (HP)	1 HP; 115/230V; 1Ph
Overall Dimensions (L x W x H) (In.)	51 x 22-1/2 x 41
Drive	Belt Drive

“
