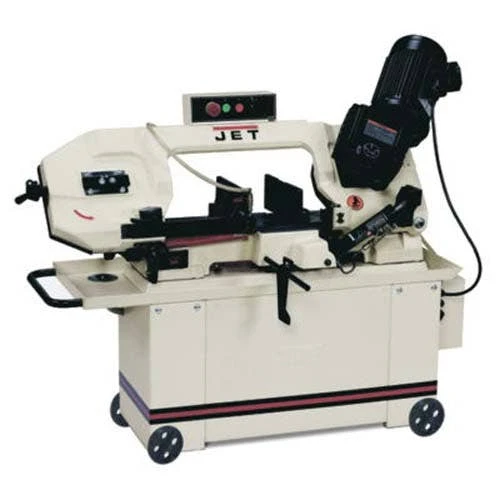

JET Tools Jet HBS-814GH 8″ X 14″ Horizontal Geared Head Bandsaw 115/230V 1Ph 414466

• Jet
• HBS-814GH; 8 x 14″ Horizontal Geared Head Bandsaw 414466
• The JET HBS-814GH was engineered with the operator in mind. An easy access control panel and heavy-duty geared head transmission for quick speed change means productivity never slows. Like every JET machine we manufacture; professionals know they can rely on this saw when the project is on the line.
• Heavy-duty geared head transmission for quick speed changes
• Hardened and ground worm gears
• Fully adjustable hydraulic downfeed system
• Easily accessible saw control panel
• Quick-positioning vise with fully adjustable jaws; swivels to 45
• Built-in; self propelled blade brush extends blade life
• Wheels permit easy storage and movement
• Coolant system
• Adjustable material stop
• 3/4″ Bi-Metal blade
• Cutting Capacity (W x D) (In.) 8 x 14
• Round at 90 Degrees (In.) 8
• Round at 45 Degrees (In.) 6-1/2
• Rectangle at 90 Degrees (In.) 14 x 8 and 2 x 14
• Rectangle at 45 Degrees (In.) 6-1/2 x 6 and 2 x 7
• Vise Swivels (Deg.) 45
• Blade Speeds (SFPM) 135; 197; 256
• Blade Wheel Diameter (In.) 12
• Blade Length (In.) 97
• Blade Size (In.) 3/4 x .035 x 97
• Bed Height (In.) 26
• Motor (HP) 1 HP; 115/230V; 1Ph
• Weight (Lbs.) 400
• Overall Dimensions (L x W x H) (In.) 51-1/2 x 18-1/8 x 44

“
