JET Tools Jet 3SS-1C-10 3 Ton 1Ph 10′ Lift 115/230V Prewired 230V 311000

Jet

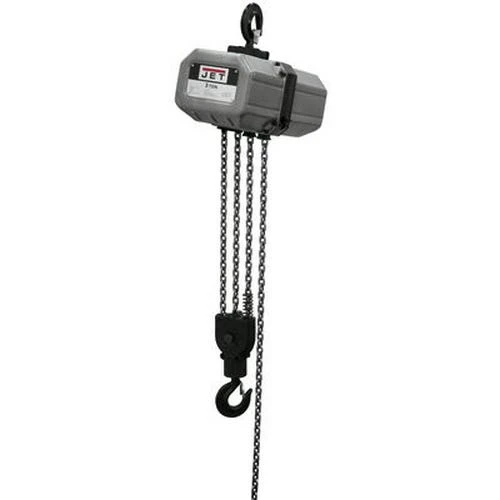

3SS-1C-10; 3-Ton Electric Chain Hoist 1-Phase 10′ Lift 311000

JET SSC Series electric hoists combines safety and durability to operate in commercial and industrial applications. The maintenance-free gear train incorporates a sealed oil bath; for reliability and durability. The JET SSC series electric hoist is available in ton to 5 ton capacities with standard lifts of 10; 15; and 20 feet (custom lifts available).

FEATURES:

• SAFETY:
• Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity.
• Thermal Overload Protection- Protects the hoist from overheating in low voltage situations.
• DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist.
• Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
• Complies with OSHA Regulations; ANSI / ASME B30.16 and HST-1 Standards.
• Load tested to 125% of capacity with certificate.
• DURABILITY:
• Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep.
• Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability.
• Control Pendant- 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings.
• All Steel Construction- Fully enclosed; all steel plate construction with a durable powder coat finish keeps out moisture; dust and debris lengthening the life of the hoist.

SPECIFICATIONS:

Duty Rating	H3
Duty Cycle	25%
Controls	NEMA 4X compliant push button control pendants
Load Capacity (Tons)	3
Lift (Ft.)	10
Lifting Speed (FPM)	6
Headroom (In.)	31-1/2
Motor Power (HP)	1-3/4
Motor Voltage (V.)	115 / 230
Load Chain Dimensions (Mm.)	8 x 24
