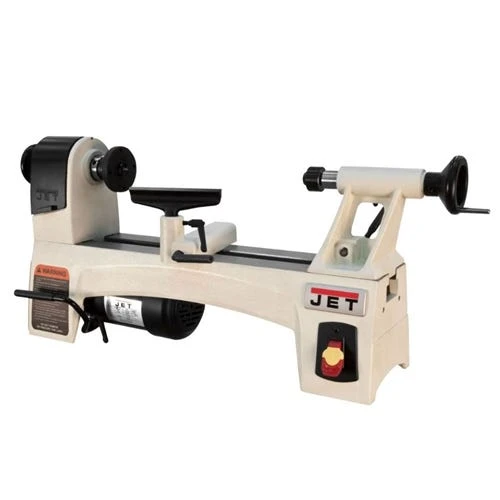

JET Tools Jet 1015 10″ X 15″ Wood Lathe 719100

Jet Tools

1015 10 x 15″ Wood Lathe 719100

The new JET 1015 is an ideal choice for the novice woodturner looking for an affordable; user-friendly first lathe; as well as the advanced enthusiast or professional who wants to add a full-featured mini-lathe to the shop. This sturdy; smooth-running 15” mini-lathe has the power; precision and versatility to turn out any number of projects.

FEATURES:

• 15-1/2” between centers.
• Six spindle speeds: 500; 840; 1240; 1800; 2630 and 3975.
• Integrated 24 position indexing.
• Improved tensioning system with easier access to belts.
• Wider bed ways provide increased rigidity.
• Live center in the tailstock.

SPECIFICATIONS:

Swing Over Bed (In.)	10″
Swing Over Tool Rest Base (In.)	7-5/16″
Distance Between Centers (In.)	15-1/2″
Spindle Bore (In.)	3/8″
Spindle Taper	MT2
Quill Taper	MT2
Quill Travel (In.)	2″
Spindle Thread (In./TPI)	1″/8 TPI
Spindle Speeds	500/840/1240/1800/2630/3975
Number of Indexing Positions	24
Bed Construction	Cast Iron
Motor Power (HP)	1/2
Motor Phase (PH)	1
Motor Voltage (V.)	115
Prewired Voltage (V.)	115
Motor Amps	5
Recommended Circuit Size (Amps.)	10
Assembled Machine Dimensions (In.)	26″L x 7″W x 14″H
Weight	90 lbs

“
