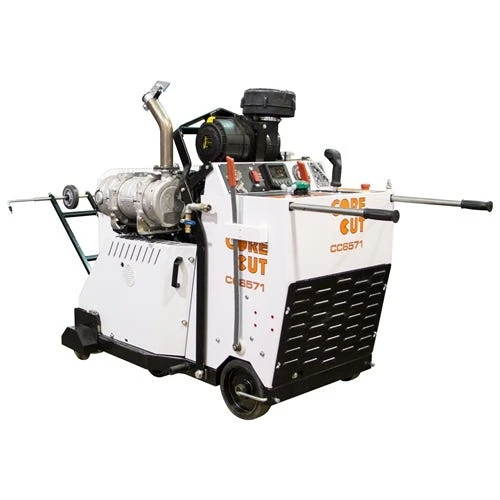

Diamond Products Core Cut 36″ 71HP Kubota Diesel CC6571D-36 Concrete Walk-Behind Saw 41741

Diamond Products

CC6571D 71 HP Walk Behind Saw 36 Single Speed 41741

FEATURES:

• Tier 4 Final liquid-cooled engine allows for a smoother running; longer lasting saw with higher productivity
• Easy to maneuver self propelled drive
• Strongest frame on the market
• Less rear weight for easy maneuvering and reduced operator fatigue
• Oil bath blade shaft comes standard
• One-hand sawing control and parking brake
• Fits through a 36 wide door frame (when guard is removed)
• Quick release blade flange
• Blade shaft tachometer-where its needed-not at the engine; gives true blade speed
• 71 HP Kubota Diesel Engine
• One hand sawing control
• Quick release bladeshaft flange and rear wheels
• Fits through a 36″ wide door frame
• Tachometer on bladeshaft where it’s needed gives true blade speed
• Powerful and reasonably priced
• Liquid-cooled engine allows for a smoother running; longer lasting saw and higher productivity
• Self propelled with hyrdrostatic transmission
• Blade shaft diameter: 2
• Arbor size: 1 w/drivepin
• Blade shaft drive: 10 belt
• Blade mounting: Right or Left
• Blade raise & lower: Electro-hydraulic pump
• Transmission: Eaton Model 10
• Drive speed: 0-200 feet/min
• Air filter: 4 Stage
• Fuel capacity: 9 gallons

Includes:

• Electric Start
• Hour meter
• Frame lift
• Telescoping front pointer
• Parking brake
• Bladeshaft tachometer
• Cutting depth indicator
• Quick disconnect blade flanges
• Oil bath blade shaft

SPECIFICATIONS:

Blade shaft diameter:	2
Arbor size:	1 with drive pin
Blade shaft drive:	10 belt
Blade mounting:	Right or left
Blade raise & lower:	Electro-hydraulic pump
Transmission:	Eaton model 10
Drive speed:	0-200 feet/minute
Air filter:	4 stage
Fuel capacity:	9 gallons

“
