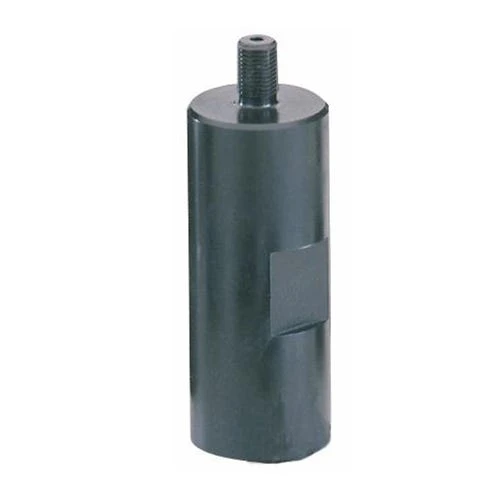

Diamond Products Core Bit Adapter Top 1.25 – 7 Female Bottom 5/8″ – 11 4400008

Diamond Products

Core Bit Adapter Top 1.25 – 7 Female; Bottom 5/8″ – 11 4400008

FEATURES:

• High quality; precision machined; threaded and tapered adapters
• Allow for Diamond Products core bits to be used on a variety of different machines
• Adapt your drill or coring motor to use a variety of high quality Core Bore diamond coring bits

Standard core bits have the following threaded hub sizes:

• 1-1/2 and under (bit diameter)= 5/8-11 thread
• (5/8 diameter; 11 threads per inch)
• 1-5/8 and up (bit diameter) = 1-250-7 thread
• (1-1/4 diameter; 7 threads per inch)

* Male bottom thread is a replaceable grade 8; 5/8-11 bolt with water way 8 For use on Weka motors

SPECIFICATIONS:

Top Thread	Bottom Thread Male	Description	Part Number	Catalog Number
1.250″-7 Female	5/8″-11	1015	4400008	01878

“
