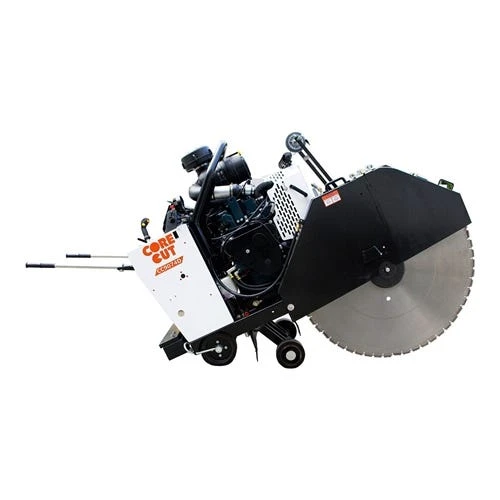

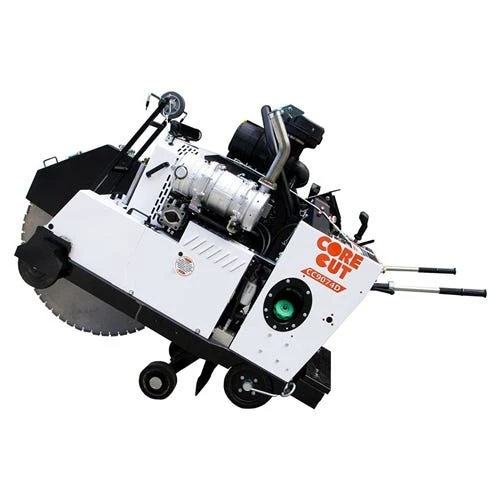

Diamond Products 54″ Core Cut 74HP Kubota Diesel CC9074DK-54 Concrete Walk Behind Saw 46758

Diamond Products

CC9074DK-54 Kubota Diesel Walk Behind Deep Cut Saw 46758

FEATURES:

• Advanced digital 7 display with engine service alerts and maintenance reminders.
• Front view camera to view sawing location and obstructions.
• LED spot and bar lights for night sawing.
• Auto Water System (AWS) automatically starts/stops water to the blade when in and out of the cut.
• Undercarriage slurry flap to minimize slurry buildup on rear axle components.
• Effective weight balance for optimum performance.
• Fast attach blade guard stabilizer with quick disconnect ball joints to speed guard removal.
• East-turn 5th wheel that automatically lifts rear wheels at max raise the height to allow rear saw swivel.
• Enclosed rear wheel motors that are hydraulically driven with center swivel for easy tracking adjustment.
• Simple freewheeling with dash mounted switch activation.
• Powerful jackshaft drive with low speed; high torque blade drive maximizing full engine power.
• Robust radiator core made of heavy-duty aluminum that withstands frequent power washing.
• Sealed electronic protection that resists heat; moisture; shock; and vibration.
• SIngle piece frame platform with heavy bar and tubular reinforcement.

SPECIFICATIONS:

Blade Capacity	54″
Engine Power	74 HP
Power Source	Diesel
Speeds	Single
Blade Shaft Speed	870 RPM
Blade Cutting Depth Max.	22.5″
Battery	12 Volt (950 CCA) group size 31
Blade Arbor Size	1” diameter with drive pin
Travel Speed	0-220 FPM (2.5 mph) forward/reverse
Safety Alerts	Emergency stop; blade overspeed; neutral start
Weight	2;723

“
