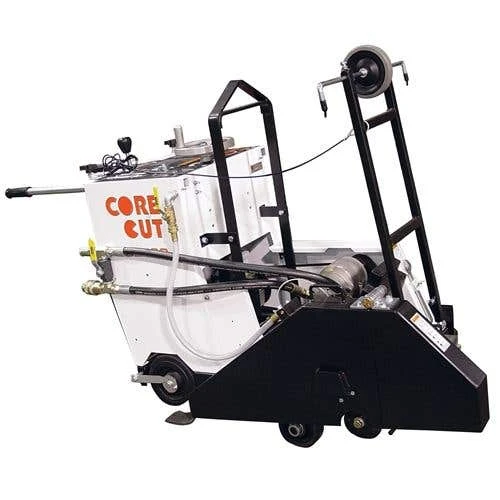

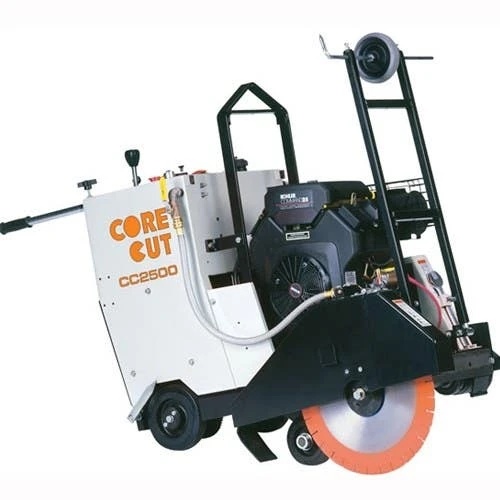

Diamond Products 26″ Core Cut 25HP Kohler CC2525KC-26 Concrete Walk-Behind Saw Hydraulic Lift 78816/6047997

Diamond Products

25HP Kohler 26 Concrete Saw CC2525KC-26 78816/6047997

FEATURES:

• Financing is available. Click here for details.
• Rigid high strength 3/16 steel box frame with heavy bar reinforcement
• 2 position tilt handle bars
• Push or self propelled drive
• Hydraulic feed raise and lower
• Cyclone air filter on gas models
• Positive gear drive to rear axle via Eaton hydrostatic transmission

INCLUDES:

Electric Start (20-25 HP models) Low Oil Alert Tach/Hour Meter (20-25 HP models) Frame Lift Quick Disconnect Blade Flanges Cutting Depth Indicator Telescoping front pointer

SPECIFICATIONS:

Maximum depth of cut with 14 blade:	4-5/8
Maximum depth of cut with 20 blade:	7-3/8
Maximum depth of cut with 26 blade:	10-3/8
Blade shaft RPM:	Varies
Blade shaft diameter:	1-1/2
Arbor size:	1 w/drive pin
Blade shaft drive:	4 belt up to 20.8HP; 5 belt for 25HP
Blade mounting:	Right or Left
Transmission (self propelled only):	Eaton Model 6
Drive Speed:	0-130 feet/min
Fuel Capacity (gas models):	5 gallons

“
