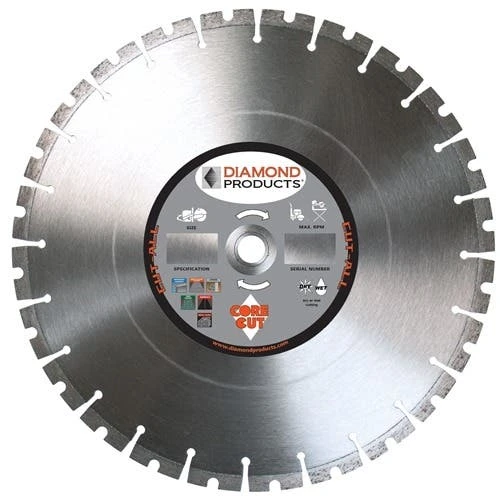

Diamond Products 20″ X .125″ Cut-All Wet/Dry High Speed Blade H8CA Concrete 1″ Arbor 84970

Diamond Products

Cut-All Wet/Dry High Speed Blade 20 x .125″ H8CA 1″ Arbor 84970

FEATURES:

• 20″ x .125″ H8CA 1″
• Cut-All Multi Purpose Wet/Dry Blades
• For high speed; masonry; and low HP walk behind saws
• Split Segment creates a larger weld surface; offering double the weld strength than conventional split segment blades
• H8CA Multi-purpose bond is best suited for harder materials
• Cuts cured concrete; green concrete; brick and block; paver block; stone; precast; ductile iron; and asphalt
• Can be used dry or with water for cooling
• High speed blade with split segment design cuts cured and green concrete; brick and block; pavers;stone; precast; ductile iron and asphaltbest suited for harder materials
• Great for the general contractor or landscaper whose job is different everyday.
• Split segment removes slurry more efficiently for faster and more economical cutting.
• Diamond depth: .310 (8mm) H8CA; .354 (9mm) H8ICA
• Segment height: .410 (10mm) H8CA; .454 (12mm) H8ICA

SPECIFICATIONS:

H8CA – General purposeH10B – Asphalt; green concrete; brick and block

H8B
Size	CAT#
12 x .125 x UNV	84967
14 x .125 x UNV	84968
18 x .125″ x 1	86709
20 x .125″ x 1	84970
20 x .140″ x 1	86633

Quality code denotes grade and color code							Cured Concrete	General Purpose	Green Concrete	Asphalt	Brick & Block
Delux-Cut (D)	1	H8D	H8D	H10D	H10D	H10D
Star-Blue (B)	2	H8B	H8B	H10B	H10B	H10B
Imperial Purple (I)	4	H8I	H8I	H10I	H10I	H10I
Heavy Duty MAXX Orange (H)	6	H7H	H8H	H10H	H10H	H10H
Heavy Duty Cut-All	6	All	All	All	All	All

“
